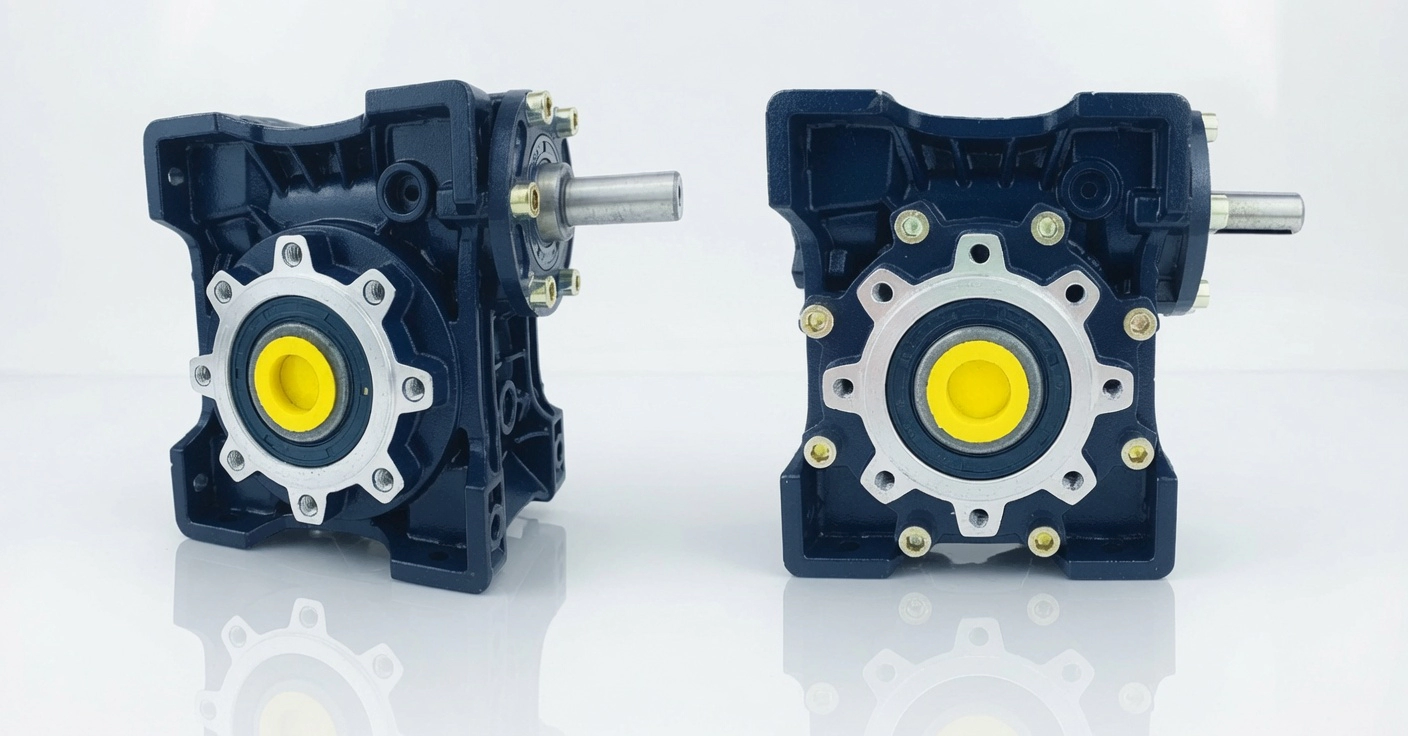

Heavy-Duty Worm Gearbox for Dam Gate Drives — Critical Water Infrastructure
Dam and weir floodgates represent some of the most safety-critical applications for worm gear reducers in Australia. Controlling spillway and radial gates on water storage facilities, irrigation weirs, and tidal barrages demands a drive system that combines extreme reliability, inherent fail-safe self-locking, and resistance to the harshest environmental conditions — all while requiring minimum maintenance over decades of continuous service in remote locations.
Large spillway gates require enormous actuating forces. Heavy-duty worm gearboxes cascade torque multiplication across multiple gear stages when needed.
Self-locking worm gears hold gate position against water head pressure with no power input — critical when electrical supply is interrupted during flood events.
IP55+ sealed housings with heavy anti-corrosion coatings withstand permanent outdoor exposure, flooding, and UV degradation over a 30-year service life.
Remote dam sites require gearboxes with multi-year maintenance intervals. Oil-bath lubricated worm drives operate reliably for 5,000+ hours between oil changes.
Dam Gate Worm Reducer Material Configuration
| Component | Material Specification | Why It Matters for Dams |
|---|---|---|
| Worm Shaft | Alloy steel, surface nitrided, anti-corrosion treated | Resists rust in permanently humid environment |
| Worm Wheel | Phosphor bronze, moisture-resistant alloy | Chemical resistance to treated reservoir water |
| Housing | Cast iron + heavy anti-corrosion epoxy coating | 30-year outdoor service life target |
| Protection Class | IP55 minimum; IP67 for submerged gate chambers | Flood inundation protection |
Engineering Considerations for Hydraulic Gate Drives
Dam and weir gate applications impose unique engineering challenges beyond those in standard industrial worm gearbox applications:
- Hydrostatic Head Loads: Gates under reservoir head pressure experience both actuating torque and axial thrust forces that must be considered simultaneously in gearbox selection. Multi-step calculation considering gate dimensions, maximum head, and friction coefficient required.
- Intermittent Seasonal Operation: Spillway gates may not be operated for months between flood events. Grease-packed bearings must not seize; oil lubricant must not degrade in a sealed stationary unit over extended periods.
- Emergency Manual Operation: All dam gate drives must incorporate emergency handwheel operation for use when electrical or mechanical power systems fail. Handwheel rim-pull force must not exceed 250 N for safe human operation under AS standards.
- Position Indication: Mechanical gate position indicators integrated with the worm gearbox output provide operators with valve travel position confirmation independent of electrical instrumentation.
Case Studies — Dam Gate Worm Reducer Installations
Industry: Irrigation water storage. Pain Point: Ageing cast iron worm gearboxes on weir radial gates had reached the end of service life after 25 years, with excessive backlash allowing gates to creep from set position under variable flow conditions.
Solution: Direct replacement with equivalent-specification worm gearboxes incorporating modern sealing and anti-corrosion coatings. Gate creep eliminated by restored self-locking integrity.
Outcome: All six weir gates re-commissioned to full specification. Water allocation accounting accuracy improved as gate position holds precisely to operator settings. Expected 25-year replacement cycle confirmed.
Industry: Coastal water management. Pain Point: Salt air and frequent tidal inundation of the gate chamber caused rapid corrosion of standard valve gearboxes, with two premature failures in three years.
Solution: Specified heavy-duty worm gearboxes with IP67 stainless steel housing and 316 SS worm shaft. Marine-grade epoxy coating on all external surfaces.
Outcome: No corrosion failures in 5 years of tidal operation. Gearbox service life tracking on target for 25-year design milestone. Salt spray corrosion costs eliminated from maintenance budget.
FAQs — Dam Gate Worm Gearboxes
How is dam gate actuator worm gearbox selection calculated?
What lubricant is recommended for worm gearboxes in permanently cold, wet dam environments?
Why Choose Our Worm Reducers for Dam and Water Infrastructure
Infrastructure Project Experience
Supply and engineering support for government water authority gate and weir rehabilitation projects.
Custom Gate Drive Design
Bespoke gear ratios, output torques, and mounting configurations for specific gate geometries and operating requirements.
Remote Engineering Support
Technical drawings, selection calculations, and installation guidance provided remotely for remote dam sites.
Visit our heavy-duty worm gearbox range, explore our water infrastructure applications, or contact our specialist team for dam gate drive engineering support.
